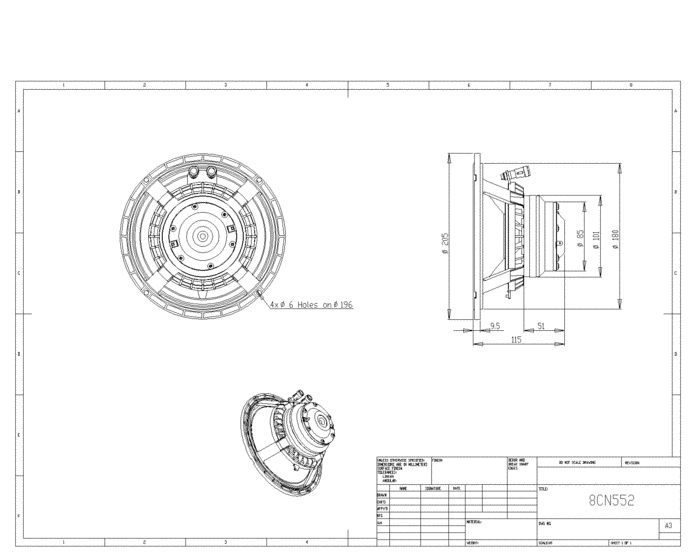

8CN552 Drawing

8CN552 Mounting Information

Overall Diameter: mm 205
Mounting Holes Diameter: mm 4 x (6 x 6.5)
Bolt Circle Diameter: mm 196
Baffle cut-out Diameter: mm 182
Overall depth: mm 115
Net Weight: kg 2.15
